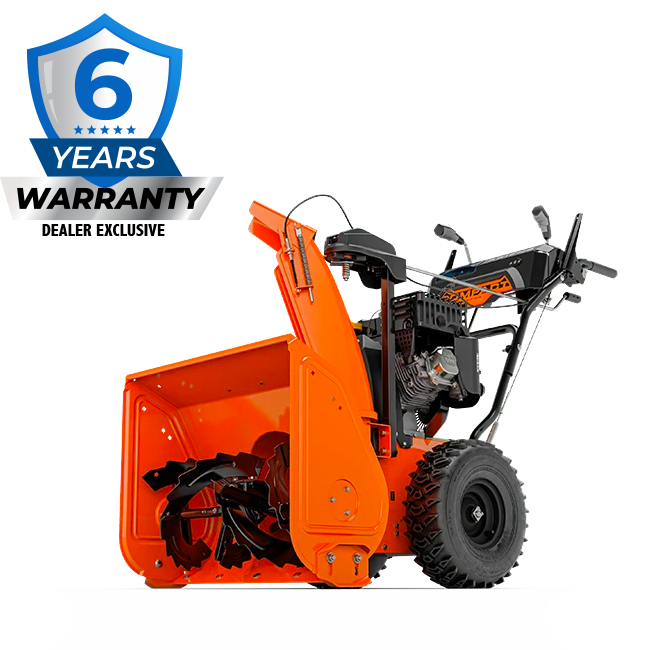

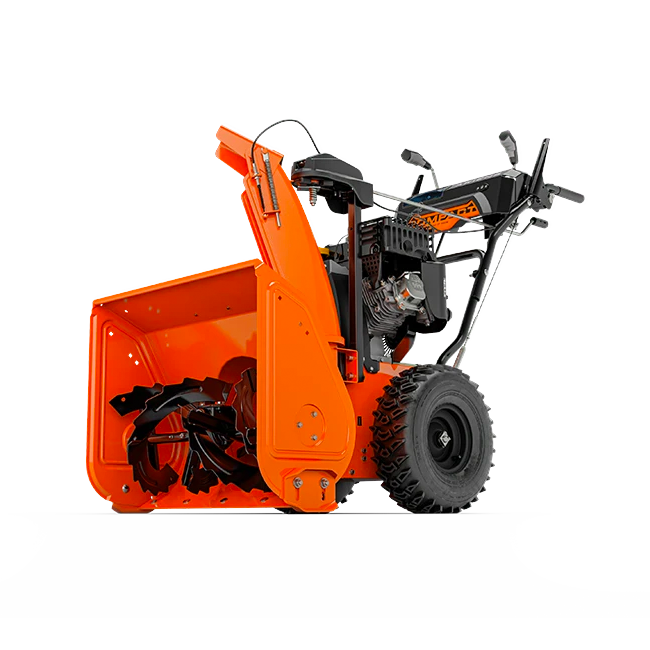

ARIENS COMPACT 24 AUTO
Designed for effortless agility while maintaining 100% Ariens® ability, the Compact Sno-Thro® is designed to be easy enough to take out for a light dusting of snow and reliable enough to tackle up to 59 tons per hour if needed. Don’t let its convenient size fool you, there’s a lot of power packed into the Ariens Compact.
COMPACT 24 WITH AUTO TURN
FEATURES AT A GLANCE
- Light Type: Halogen
- Handwarmers: Optional
- Remote Deflector Control: Standard
- Drift Cutters: Optional
- One Hand Interlock: Standard
| POWER TRAIN | |||
|---|---|---|---|
| ENGINE |
Ariens AX® |
||
| STARTING SYSTEM |
120v / Electric |
||
| STEERING |
Auto-Turn |
||
| DRIVE TYPE |
Disc-O-matic |
||
| SPEEDS |
6 Forward/2 Reverse |
||
| TIRE SIZE |
15 In / 38.1cm |
||
| TIRE TYPE |
Directional Snow Tread |
||
| CLEARING SPECS | |||
| CLEARING WIDTH (IN/CM) |
24 In / 60.9cm |
||
| HOUSING HEIGHT |
20 In / 50.7cm |
||
| THROWING DISTANCE |
3 ft - 40 ft |
||
| CHUTE ROTATION |
2.5x Quick Turn |
||
| CHUTE TURNING RADIUS |
205 |
||
| DEFLECTOR CONTROL |
In-Dash Lever |
||
| STAGE TYPE |
Two Stage |
||
| AUGER DIAMETER |
11 In / 27.9cm |
||
| AUGER TYPE |
Steel Serrated |
||
| IMPELLER PROFILE |
Steel 3 Blade |
||
| IMPELLER DIAMETER |
12 In / 30.4cm |
||
| SKID SHOES |
Steel Reversible |
||
| SCRAPER BAR |
Steel Adjustable |
||
| GEAR CASE |
Cast Iron |
||
| DIMENSIONS | |||
| LENGTH |
53.3 In / 135.3cm |
||
| WIDTH |
26.4 In / 67cm |
||
| HEIGHT |
44 In / 111.7cm |
||
| WEIGHT (ASSEMBLED) |
187 lb / 84.8 kg |
||
| WARRANTIES | |||
| PRODUCT WARRANTY |
3 years residential use. 90 days commercial use |
||
| GEAR CASE WARRANTY |
5 Year Consumer, 1 Year Commercial |
||
| EXCLUSIVE ENGINE WARRANTY |
6 Year Consumer, 2 Year Commercial |
||
Includes PDI: Unpackaging and recycling, product assembly, stabilized fuel (up to 5 litres), engine oil, product start-up, testing, adjustments and warranty registration.
