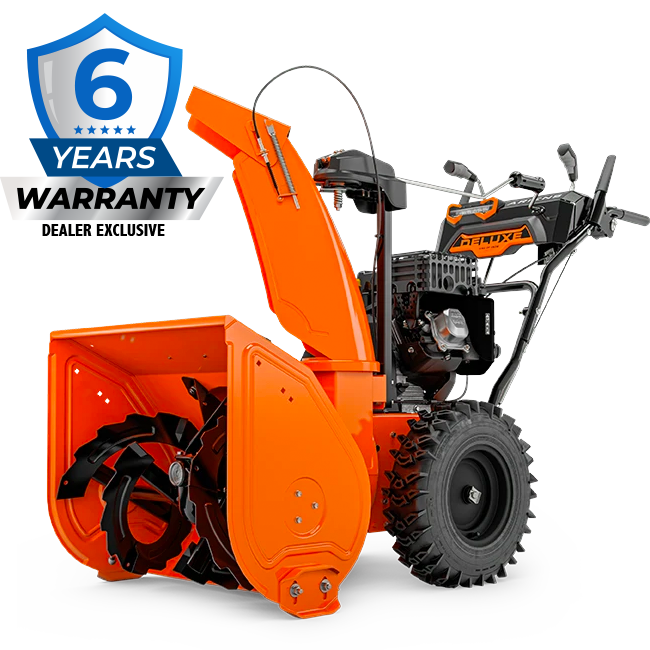

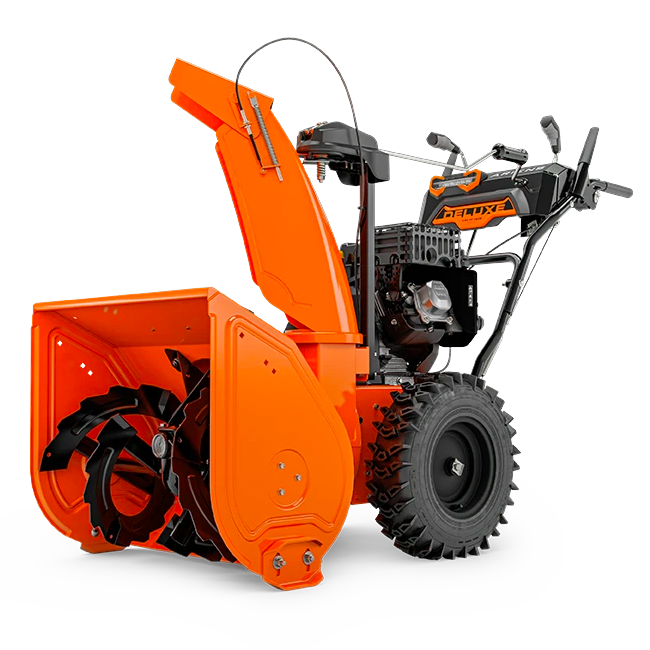

ARIENS DELUXE 28 SHO
With Super HIgh Output Impeller (SHO), this is a mean, snow-clearing machine that adapts to anything winter throws its way.
DELUXE 28 SHO
FEATURES AT A GLANCE
- Light Type: LED
- Handwarmers: Optional
- Remote Deflector Control: Standard
- Drift Cutters: Optional
- One Hand Interlock: Standard
| POWER TRAIN | |||
|---|---|---|---|
| ENGINE |
Ariens AX® |
||
| STARTING SYSTEM |
120v / Electric |
||
| STEERING |
Auto-Turn |
||
| DRIVE TYPE |
Disc-O-matic |
||
| SPEEDS |
6 Forward/2 Reverse |
||
| TIRE SIZE |
16 In / 40.6cm |
||
| TIRE TYPE |
Directional Snow Tread |
||
| CLEARING SPECS | |||
| CLEARING WIDTH (IN/CM) |
28 In / 71.1cm |
||
| HOUSING HEIGHT |
21 In / 53.3cm |
||
| THROWING DISTANCE |
3 ft - 55 ft |
||
| CHUTE ROTATION |
2.5x Ice Drill |
||
| CHUTE TURNING RADIUS |
200 |
||
| DEFLECTOR CONTROL |
In-Dash Lever |
||
| STAGE TYPE |
Two Stage |
||
| AUGER DIAMETER |
14 In / 35.5cm |
||
| AUGER TYPE |
Steel Serrated |
||
| IMPELLER PROFILE |
High Speed Steel 3 Blade |
||
| IMPELLER DIAMETER |
14 In / 35.5cm |
||
| SKID SHOES |
Steel Reversible |
||
| SCRAPER BAR |
Steel Adjustable |
||
| GEAR CASE |
Cast Iron |
||
| DIMENSIONS | |||
| LENGTH |
58.6 In / 148.8cm |
||
| WIDTH |
29.9 In / 75.9cm |
||
| HEIGHT |
45.3 In / 115cm |
||
| WEIGHT (ASSEMBLED) |
267.5 lb / 121.3 kg |
||
| WARRANTIES | |||
| PRODUCT WARRANTY |
3 years residential use. 90 days commercial use |
||
| GEAR CASE WARRANTY |
5 Year Consumer, 1 Year Commercial |
||
| EXCLUSIVE ENGINE WARRANTY |
6 Year Consumer, 2 Year Commercial |
||
Includes PDI: Unpackaging and recycling, product assembly, stabilized fuel (up to 5 litres), engine oil, product start-up, testing, adjustments and warranty registration.
