ECHO Power Equipment
Chainsaws
CS-680
66.8 cc Rear-Handle Chainsaw
SPECIFICATION
66.8 cc Rear-Handle Chainsaw
When a paycheck depends on performance, the pros reach for the CS-680. With 66.8 ccs of professional-grade ECHO power and available 20, 24 and 27 in. Performance Cutting System™ bar upgrades, it cuts the toughest jobs down to size.

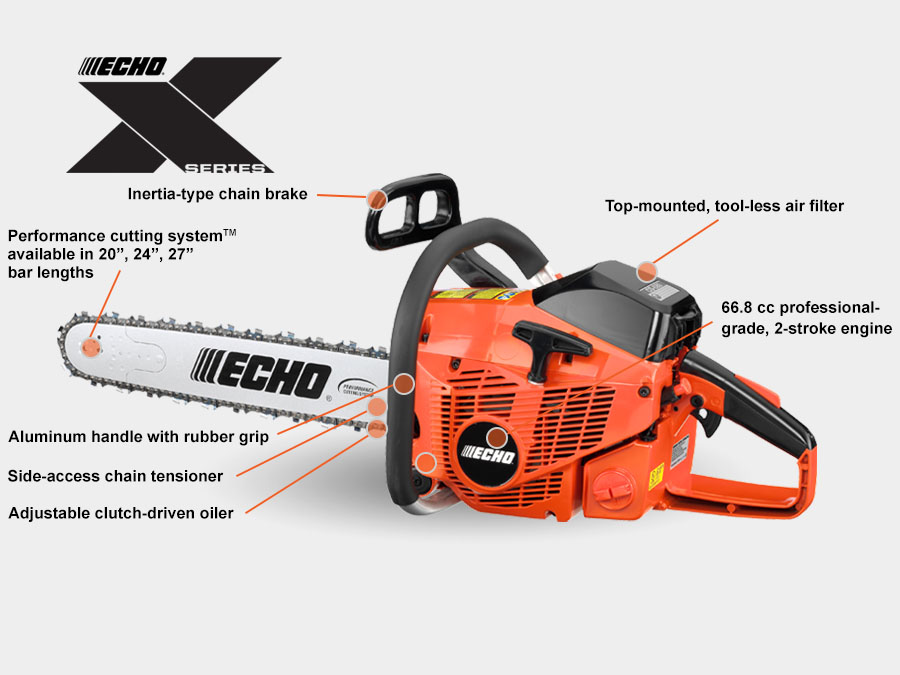

TOP FEATURES
- 66.8 cc professional-grade, 2-stroke engine
- Performance Cutting System™
- Aluminum handle with rubber grip
SPECIFICATION
| Engine Displacement (cc) | 66.8 |
| Engine Displacement (cu in) | 4.07 |
| Starting System | Standard |
| Ignition System | SAIS |
| Oiling System | Automatic/Adjustable (with manual override) |
| Vibration Reduction System | Standard |
| Available Bar Lengths (in) | 20, 24, 27 |
| Oil Capacity (ml) | 370 (12.5 fl. oz.) |
| Dry Weight (lbs) 1 | 14.6 (6.6 kg) |
| Sprocket Cover | Plastic |
| Bar Type | PowerMatch |
| Sprocket Type | Rim |
| Handle | Aluminum w/ Rubber |
| Fuel Capacity (ml) | 639 (21.6 fl. oz.) |
| Carburetor (w/Purge Pump) | Butterfly-Valve Diaphragm (without purge pump) |
| Warranty | 5 year consumer / 1 year commercial |
